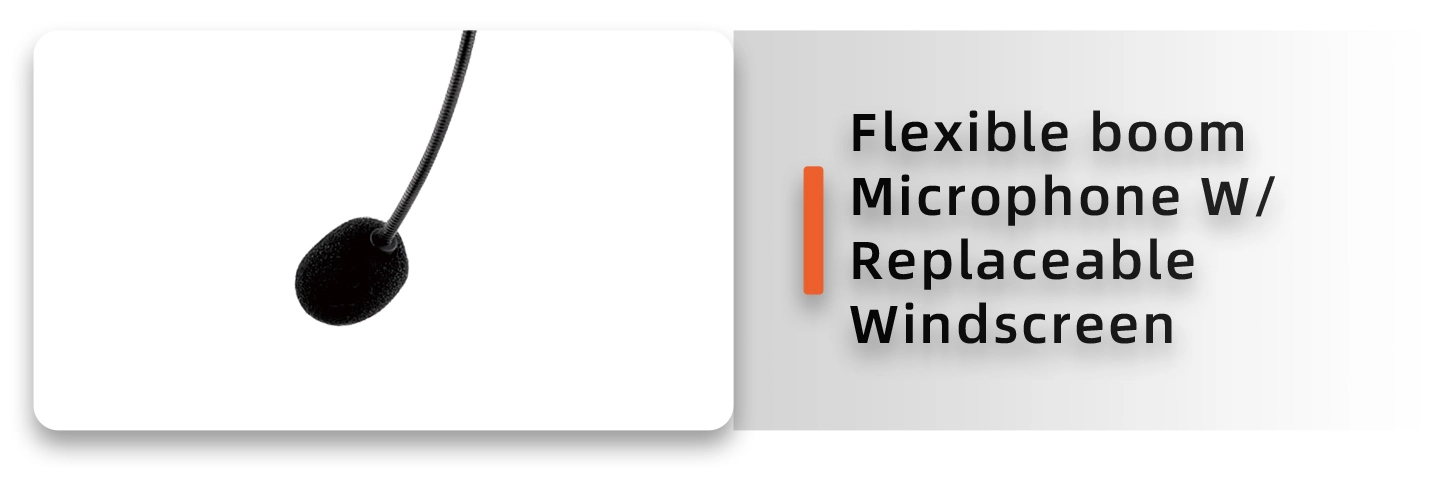

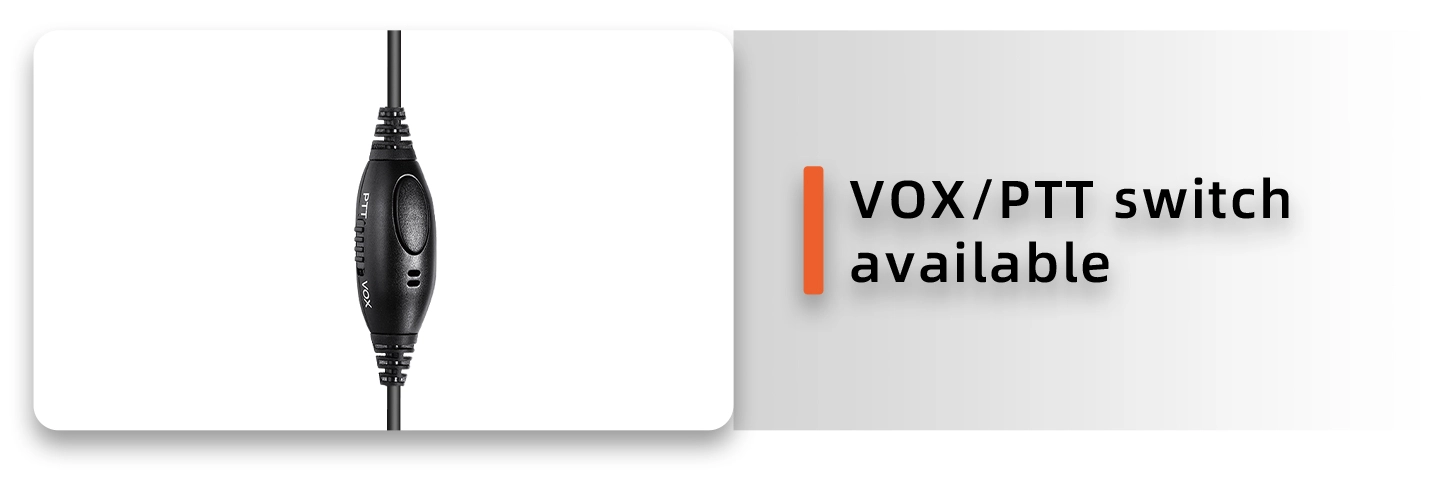

RHS-0128 is a behind-the-head headset with a flexible boom microphone and in line push-to-talk (PTT) with hands-free VOX for two way radios. provides high-clarity, hands-free, discreet two-way communication, while maintaining the comfort necessary for extended wear in moderate noise environments.
Microphone Specification: | |
Sensitivity Range | -40± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max | 2.2K2 1kHz (RL=2.2KΩ) |
Frequency | 20-20KHz |
Current Consumption Max | VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range | 2.5-10V (DC |
Max Sound pressure Level | 110dB S.P.L |
Speaker Specification: | |
Impedance | 32Ω+15%@1KHZ |
Sensitivity | 110dB+10%/1Watt 0.5Meter |
Resonance freq | (FO) 680HZ+20% |
Frequency respond | F-5KHZ |
Rated input power | 1.0W |
Maximum input power | 1.5W |
The RayTalk light weight headset provides solutions to ensure communication remains available and protects your hearing while operating in the noisy environment.
