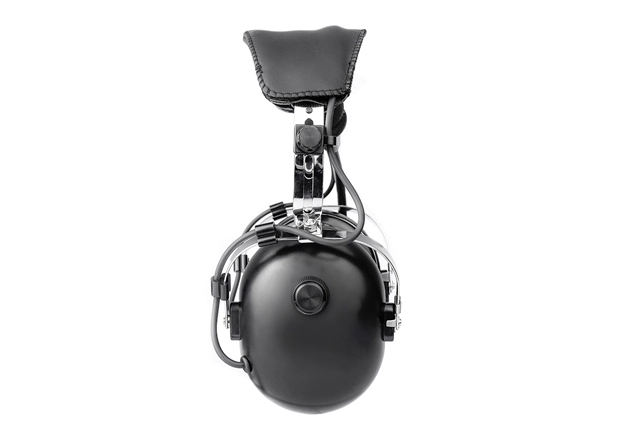

PH-100AHC Active Noise Reduction (ANR) Headset is designed for Helicopter pilots who take flying seriously.
Using the newest sound technology, Active noticeably reduces cockpit noise up to 52db. So you can fly longer, more comfortably, in a quieter environment.
Battery Box With S/M Switch.The headset will shut-off automatically when the headset is unplugged from the battery box or is manually turned off using the toggle switch on the battery box. The headset will also automatically turn off when the radio or avionics master switch is turned off.
Microphone Specification: | |
Sensitivity Range | -52± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max | 2.2K2 1kHz (RL=2.2KΩ) |
Frequency | 20-20KHz |
Current Consumption Max | VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range | 2.5-10V (DC |
Max Sound pressure Level | 110dB S.P.L |
Speaker Specification: | |
Impedance | 45Ω+15%@1KHZ |
Sensitivity | 95dB+10%/1Watt 0.5Meter |
Resonance freq | (FO) 680HZ+20% |
Frequency respond | F-5KHZ |
Rated input power | 1.0W |
Maximum input power | 1.5W |
RayTalk is dedicated to providing a full range of anr aviation headset, we offer cost-effective and reliable solutions.
