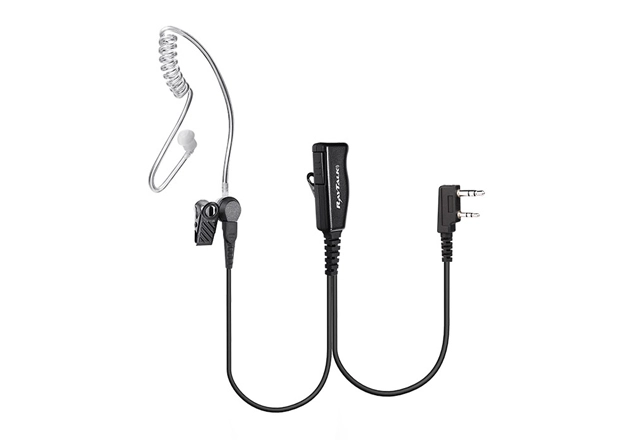

EM-4132 Walkie Talkie Earpiece Earphone Headset with PTT Mic for Two-Way Radio

EM-4132 radio communication earpiece features a clear acoustic tube and mushroom tipped surveillance earpiece for candid conversations. A Push-to-talk (PTT) button / microphone is on a separate wire that can be clipped to your lapel (clip included), hidden inside a pocket, or routed down a sleeve.

Get A Quote
EM-4132 Walkie Talkie Earpiece Earphone Headset with PTT Mic for Two-Way Radio

DETAILS

Details of EM-4132 Walkie Talkie Earpiece Earphone Headset with PTT Mic for Two-Way Radio
Details of EM-4132 Walkie Talkie Earpiece Earphone Headset with PTT Mic for Two-Way Radio
Details of EM-4132 Walkie Talkie Earpiece Earphone Headset with PTT Mic for Two-Way Radio
Details of EM-4132 Walkie Talkie Earpiece Earphone Headset with PTT Mic for Two-Way Radio

Specification of EM-4132 Walkie Talkie Earpiece Earphone Headset with PTT Mic for Two-Way Radio


Microphone Specification:

Sensitivity Range

-40± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz

Impedance Max

2.2K2 1kHz (RL=2.2KΩ)

Frequency

20-20KHz

Current Consumption Max

VS=2.0V RL=2.2KΩ MAX: 500 μA

Operation Voltage Range

2.5-10V (DC

Max Sound pressure Level

110dB S.P.L


Speaker Specification:

Impedance

100Ω+15%@1KHZ

Sensitivity

117dB+10%/1Watt 0.5Meter

Resonance freq

(FO) 680HZ+20%

Frequency respond

F-5KHZ

Rated input power

1.0W

Maximum input power

1.5W


Specification of EM-4132 Walkie Talkie Earpiece Earphone Headset with PTT Mic for Two-Way Radio
